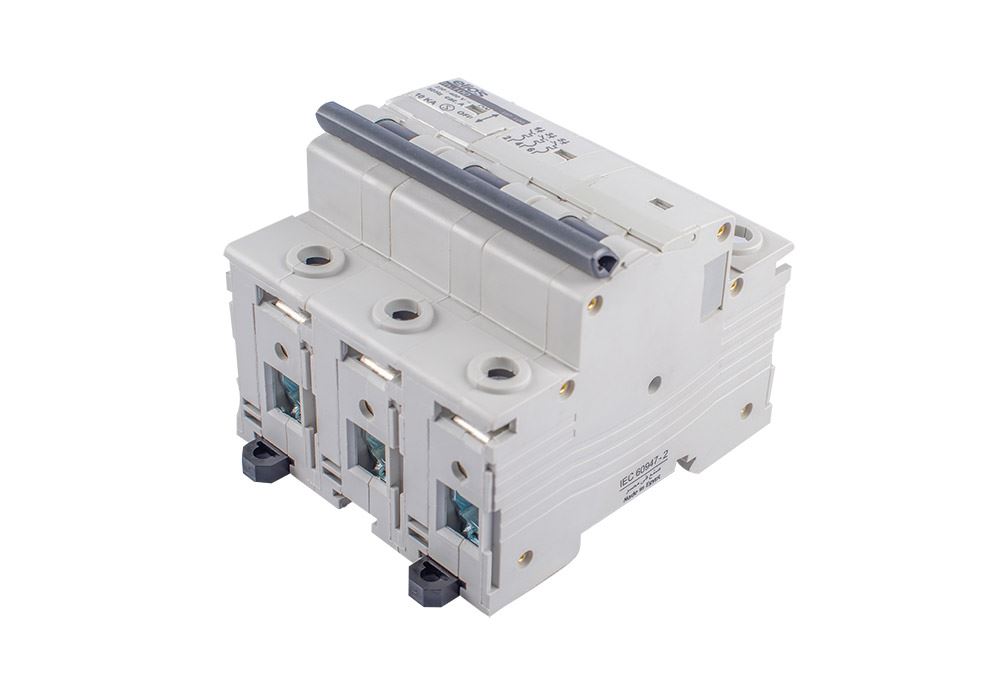

Miniature Circuit Breaker (3) Poles

  • Color: Available in 1 color
  • Pole No.: 3
  • Rated voltage: AC 400/230V
  • Rated current (A): 32.40.50.63.100
  • Tripping curve : B, C, D
  • Rated short - circuit capacity (Icn) : 6000A
  • Rated frequency: 50/60Hz
  • Energy limiting class: 3
  • Rated impulse with stand voltage: 6.2Kv
  • Electro – mechanical endurance: 4000
  • Contact position indication Connection terminal:• Screw terminal
    • Pillar terminal with clamp
  • Connection capacity: Rigid conductor up to 25mm
  • Fastening torque: 2.0 Nm
  • Installation: • On symmetrical DIN rail 35mm
    • Panel mounting
